The catalytic power within green solid powder makes Rh₂(OAc)₄ an irreplaceable "carbene shuttle" in modern organic synthesis.
Rhodium(II) acetate dimer (Rh₂(OAc)₄，CAS：15956-28-2), a classic dirhodium(II) catalyst, occupies a central position in metal carbene chemistry due to its unique axial coordination capability and controlled carbene transfer characteristics. Its molecular structure features two rhodium atoms connected by a metalmetal bond, bridged peripherally by four acetate ligands to form a rigid planar structure. This architecture provides a stable coordination environment for carbene intermediates, endowing it with balanced high reactivity and selectivity—making it the preferred catalyst for key transformations including cyclopropanation, CH insertion, and ylide formation.
01 Core Mechanism of carbene Transfer
The essence of Rh₂(OAc)₄catalyzed carbene transfer lies in generating electrophilic rhodiumcarbene intermediates. When αdiazo carbonyl compounds (e.g., diazoacetates) react with Rh₂(OAc)₄, the diazo group releases nitrogen gas to form highly reactive Rh₂carbene complexes. The carbene carbon in this intermediate exhibits strong electrophilicity (classified as a Fischertype carbene) and readily undergoes electrophilic reactions with electronrich groups.
Kinetic and Selectivity Control:
The reaction pathway of rhodium carbenes is significantly influenced by ligand electronic effects. The moderate electrondonating ability of acetate ligands allows Rh₂(OAc)₄ to balance reactivity and selectivity. Compared to rhodium trifluoroacetate dimer (Rh₂(tfa)₄) with electronwithdrawing ligands, it demonstrates superior regioselectivity in CH insertions.
Axial Coordination Effect:
Substrate molecules (e.g., alkenes, ethers) can coordinate at the axial positions of rhodium atoms, preorganizing the reaction conformation—a key factor for achieving high stereoselectivity.
02 Cyclopropanation Reactions: Precise Construction of ThreeMembered Rings
Rh₂(OAc)₄ ranks among the most efficient catalysts for alkene cyclopropanation, particularly in synthesizing polysubstituted cyclopropane structures—ubiquitous scaffolds in natural products and pharmaceuticals.
General Reaction & Characteristics:
Diazo compound + Alkene → Cyclopropane derivative
The reaction proceeds via a concerted [2+1] cycloaddition, typically preserving the alkene’s original stereochemistry (cisalkenes yield ciscyclopropanes).
Synthetic Application Example:
In the total synthesis of antibiotic natural products, Rh₂(OAc)₄ catalyzes intramolecular cyclopropanation to construct a fused tricyclic structure with a quaternary carbon center in one step (82% yield).
Table: Performance Comparison of Rh₂(OAc)₄ in Cyclopropanation with Different Alkenes
03 CH Insertion Reactions: Activating Inert Chemical Bonds
Rh₂(OAc)₄catalyzed CH insertion achieves direct CH bond functionalization, bypassing prefunctionalization steps and dramatically improving synthetic efficiency. This reaction exhibits remarkable site selectivity, generally following the order:
Tertiary CH > Secondary CH > Primary CH (inversely correlated with bond dissociation energy).
Intramolecular CH Insertion:
In steroid modification, Rh₂(OAc)₄ catalyzes the insertion of a diazoacetoxy fragment into adjacent tertiary CH bonds, efficiently constructing γlactone rings—key intermediates for hormone drug derivatives.
Intermolecular CH Insertion:
Though more challenging, high selectivity can still be achieved through substrate design (e.g., using directing groups). For example, in benzylic CH amination with PhI=NTs, Rh₂(OAc)₄ delivers a 20:1 selectivity ratio.
04 HeteroatomInvolved Reactions: Ylide Formation and Rearrangement
Rh₂(OAc)₄ effectively generates ylides, particularly for XH insertions (X=O, N, S) and subsequent rearrangements.
Classical Reaction Modes:
1. OH Insertion: Alcohols react with rhodium carbenes to form oxonium ylides, directly yielding ethers or rearranged carbonyl compounds.
2. NH Insertion: Amines participate to form ammonium ylides, a vital route to αamino acid derivatives.
Controlling Rearrangements:
In reactions between propargyl alcohols and diazo esters, Rh₂(OAc)₄ catalyzes enol ether intermediate formation followed by Claisen rearrangement to give allenols. Switching to Rh₂(tfa)₄ predominantly yields isomerization products, highlighting liganddependent pathway control.
05 Synthetic Application Case Studies
Case 1: Synthesis of βHydroxyαarylacrylates
Rh₂(OAc)₄ catalyzes diazoacetate decomposition with 1,2aryl migration, efficiently building βhydroxyαarylacrylates bearing quaternary carbon centers. These products are key precursors to the anticoagulant warfarin.
Case 2: Total Synthesis of ()Indolizidine 209B
The pivotal step employs Rh₂(OAc)₄ for intramolecular CH insertion:
Diazoamide → Rhcarbene intermediate → Stereoselective γCH insertion → Construction of fused bicyclic pentacyclic structure
This step achieves 99% ee, demonstrating exceptional stereocontrol.

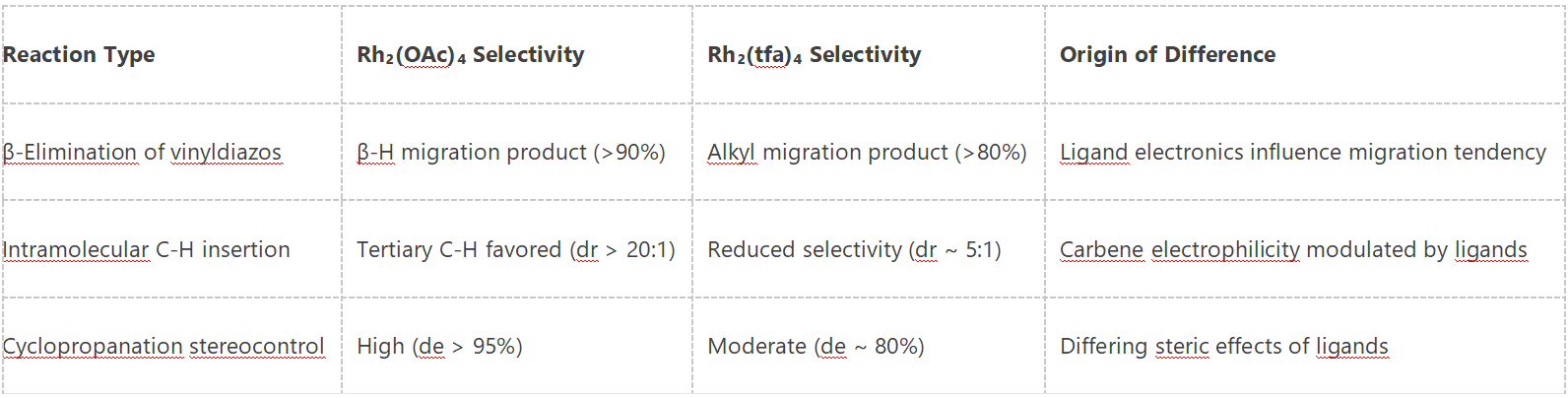

Table: Selectivity Comparison Between Rh₂(OAc)₄ and Rh₂(tfa)₄ in carbene Transfer
06 Conclusion & Operational Guidelines
Rhodium(II) acetate dimer has established itself as the "gold standard" catalyst for carbene transfer reactions due to its unique dinuclear structure and balanced reactivity. Its value in complex molecule synthesis is reflected in:
✅ Highly selective construction of threemembered rings & quaternary centers
✅ Direct functionalization of inert CH bonds
✅ Precise control of heteroatom ylides
Operational & Storage Recommendations:
1. Preactivation: Dry at 60°C under vacuum for 2 hours before use to remove adsorbed water.
2. Solvent selection: Prioritize anhydrous CH₂Cl₂ or toluene; avoid protic solvents to prevent competitive reactions.
3. Storage: Seal under argon at 4°C (<10% humidity); activity remains stable for >2 years.
4. Safety: Operate with N95 masks and solventresistant gloves (OSHAcompliant); avoid dust inhalation.
> Mechanistic studies by Peking University using Hammett linear freeenergy relationships confirmed: The strong electrophilicity of the carbene carbon in Rh₂(OAc)₄ (ρ = +1.8) underpins its high selectivity. This discovery provides a theoretical foundation for rational design of novel rhodium catalysts.
